Product Description

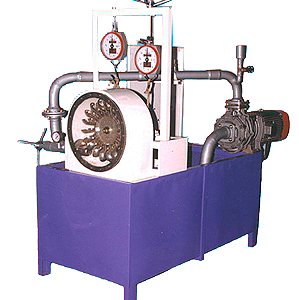

The ‘Swarg Systems & Instruments’ apparatus consists of a small Pelton wheel connected to a rope brake. Water is supplied to the turbine by a centrifugal pump. Water flow is measure by a venturimeter and a mercury manometer. Water jet is directed over the buckets by a nozzle & a spear operating inside the nozzle controls the water flow. Thus the students can visualize the operation & estimate B. H. P. & W. H. P. and various efficiencies of Pelton Turbine.

SPECIFICATIONS
1) Pelton Wheel – Fitted with 18 buckets, nozzle for water jet, spear arrangement and casing with one side of perspex sheet, developing 5 HP at 750 rpm.
2) Water supply pump to supply the water at the head of 62 meters, 15 H. P. capacity,
monoblock, ‘ISI’ mark ‘Kirloskar’ make.
3) Venturi with mercury manometer to measure water flow rate.
4) Pressure gauge to measure the head.
5) Rope brake arrangement with spring balances.
6) The unit is recirculating type with all the components mounted over the sump tank
A technical manual accompanies the unit.
The unit provided with and attractive & rust proof powder coating.

SERVICES REQUIRED

  1. 440 v, 32 A, AC supply.
  2. Floor space of 2m x 1.5m (approx)
  3. Tachometer (can be supplied at extra cost.)
