Product Description

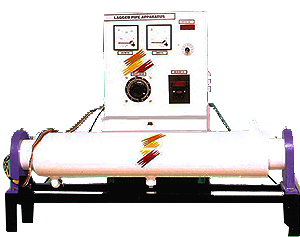

The ‘Swarg Systems & Instruments’ apparatus consists of three concentric pipes, at the axis of which a cartridge heater is positioned. Two types of lagging materials are filled up, one between innermost and middle pipe and other between middle and outermost pipe. Temperature across the lagging material i.e. temperature of pipe walls for radial outward heat flow are measured by the thermocouples. The heater can be supplied with different heat inputs with the help of dimmer stat so that characteristics of lagged pipe can be studied at different heat flow rates.

SPECIFICATIONS

1) Pipes

  1. Inner pipe 50 mm. NB. 1000 mm long G. I. pipe.
  2. Middle pipe 100 mm. NB, 1000 mm long G. I. pipe.
  3. Outer pipe 150 mm NB. 1000 mm long G. I. pipe.

A cartridge heater is provided at the axis of pipes.

2) Lagging

  1. Asbestos powder filled between inner and middle pipes.
  2. Saw dust filled between outer and middle pipes.

3) Thermocouples with digital temperature indicator to measure the various temperatures.

4) Dimmer stat 2 A, for heater.

5) Voltmeter and Ammeter for heater input measurements.

A technical manual accompanies the unit.

The unit provided with and attractive & rust proof powder coating.

SERVICES REQUIRED

1) Bench area of about 1.5 m x 0.75 m at working height.

2) 230 V, AC, stabilised supply with earthing connections.
