Product Description

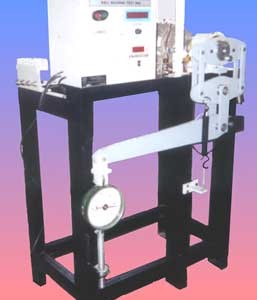

The apparatus consists of a shaft driven by motor to which the bearing to be tested is fixed. The load is applied to bearing through the lever arrangement. The special parallelogram loading attachment transmits the load to the bearing under test & at the same time, permits the measurement of friction torque. The torque is measurements by dead weights & torque arm. The number of revolutions are counted by a revolution counter. After completion of test, the radial clearance can be measured. Thus the bearing can be tested for load test, endurance test as well as friction test.

SPECIFICATIONS :

  1. Bearing Mounting Fixture – Consists of a set of bearing races for bearings from 6201 to 6212 with parallelogram loading attachment.
  2. Drive motor – 3 HP, 1400 rpm DC motor.
  3. Hydraulic system for applying the load, maximum loading capacity 30 kN.
  4. Electronic revolution counter with digital indicator.
  5. Torque arm with dead weights for measurement of friction torque.
  6. Fixture for measurement of radial clearance of bearing.

The unit is provided with attractive powder coating.

SERVICES REQUIRED :

  1. Floor space of about 1.5m x 1m.
  2. 15A, 230 V, stabilized AC supply.
