Product Description

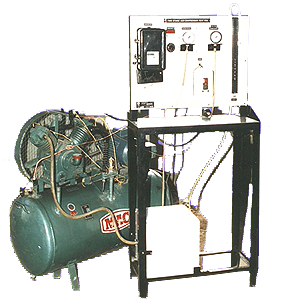

The Swarg Systems & Instruments test rig comprises of a two stage air compressor fitted with an air tank with orifice , pressure gauges and an a energymeter to measure the input. A air cooled intercooler is provided between the first and second stage. A digital temperature indicator measures the temperatures at various points. The compressor is mounted on air receiver alongwith the motor, and is provided with air relief valve (safety) and a pressure switch.
The unit determine volumetric efficiency and isothermal efficiency at various discharge pressures.

SPECIFICATIONS
1) Air compressor – Double cylinder, Two stage type driven by a 2 hp. three phase motor mounted on air receiver provided with delivery valve.
2) Pressure gauges at outlet of the both stages.
3) Air tank and orifice with water manometer for air intake measurement.
4) Digital temperature indicator.
5) Energymeter to measure input power
A technical manual accompanies the equipments.

SERVICES REQUIRED
1) Floor space of 2.5 x 1.5 m
2) 440 V, 15 A, 3 ph. Ac supply with neutral and earthing connection.
3) A hand tachometer. ( It can be supplied at extra cost )
